When building applications with Large Language Models (LLMs), the architecture typically evolves through three phases: simple prompt wrappers, linear chains, and autonomous agents.

As developers hit the limits of basic prompting, orchestration frameworks become necessary. While LangChain popularized the concept of chaining LLM calls in a linear fashion, LangGraph was developed to support stateful, cyclical multi-agent workflows. This article contrasts these two frameworks, examining when to use each and how their architectures differ.

LangChain: Linear Directed Acyclic Graphs (DAGs)

LangChain was built to assemble sequences of operations—known as chains—to process natural language. At its core, LangChain models the interaction as a Directed Acyclic Graph (DAG), where data flows in one direction from input to output.

LangChain Expression Language (LCEL)

To streamline this process, LangChain introduced the LangChain Expression Language (LCEL), which uses the pipe operator (|) to bind prompt templates, models, and output parsers together:

  Input  -->  PromptTemplate  -->  LLM  -->  OutputParser  -->  Output

This model is powerful for straightforward, predictable tasks such as:

Document summarizing.
Structured data extraction.
Basic Retrieval-Augmented Generation (RAG) where the document is retrieved once and passed to the LLM.

The Limitation: No Loops

Real-world problem-solving is rarely linear. Consider a code-generation agent that writes code, runs a unit test, captures the error output, and passes the error back to the LLM to write a corrected version. This requires a loop (a cycle).

In standard LangChain, building cycles is difficult. While you can construct loops via recursive Python code, the framework itself has no native mechanism to track state across cyclical execution blocks, perform branching decisions easily, or support human-in-the-loop approvals.

LangGraph: Stateful, Cyclical Graph Framework

LangGraph, built by the same creators of LangChain, is a separate library designed to address these limitations. It models agent architectures as state machines represented by graphs.

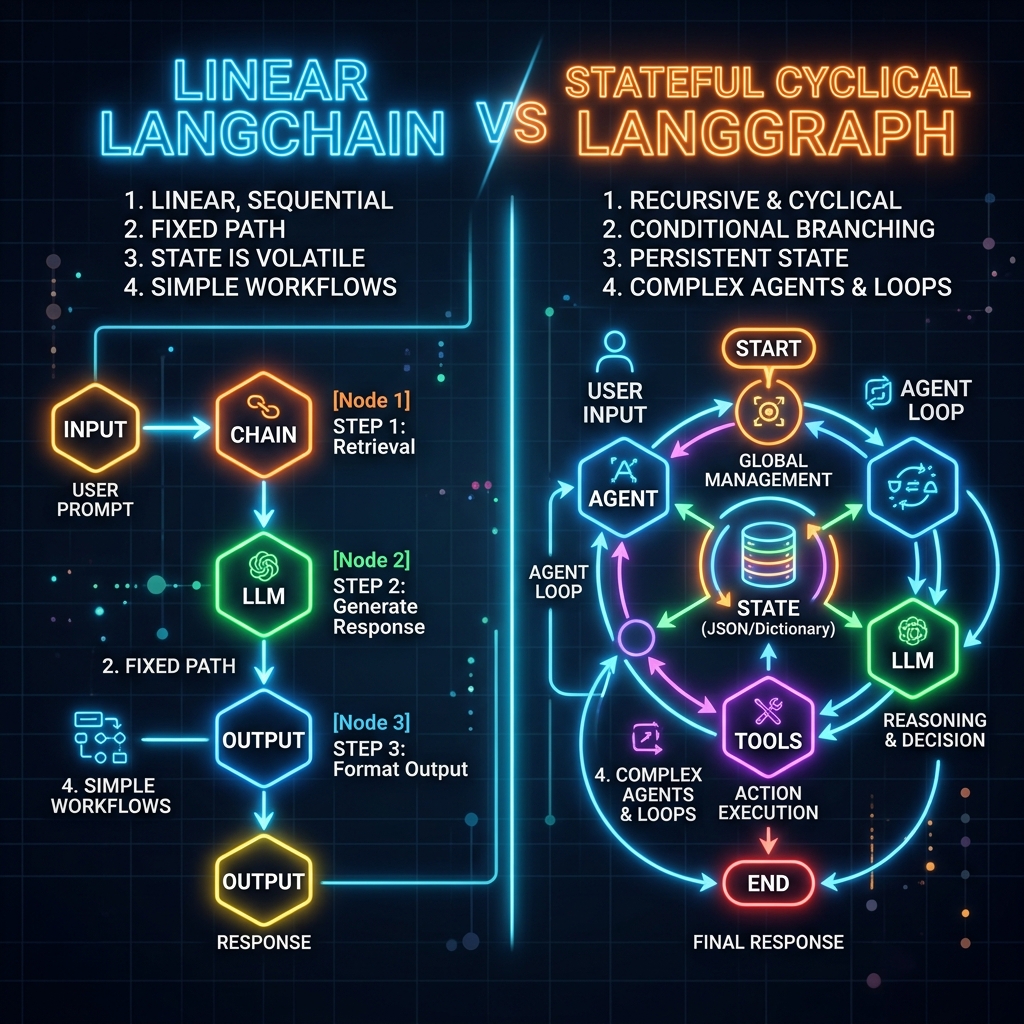

LangChain vs. LangGraph: Comparison diagram showing linear LangChain chains vs stateful cyclical LangGraph state machines LangChain vs. LangGraph: Comparison diagram showing linear LangChain chains vs stateful cyclical LangGraph state machines

The Three Core Concepts of LangGraph

State: A shared, global data structure (typically a Python dictionary or a Pydantic object) that represents the current state of the application. Each node in the graph can read from and write to this state.
Nodes: Private functions or runnable steps that accept the current state as input, perform a task (like calling an LLM or running a script), and return updates to write back to the state.
Edges: Connective pathways that determine the execution order.
- Normal Edges: Route execution from one node to the next.
- Conditional Edges: Dynamically route the workflow based on the values in the current State.

Side-by-Side Code Comparison

1. LangChain: Linear LCEL Chain

Below is a standard LangChain implementation that structures a linear translation-and-formatting pipeline.

from langchain_core.prompts import ChatPromptTemplate
from langchain_core.output_parsers import StrOutputParser
from langchain_openai import ChatOpenAI

# Initialize Model
model = ChatOpenAI(model="gpt-4o-mini", temperature=0)

# Build Prompt and Output Pipeline
prompt = ChatPromptTemplate.from_template(
    "Translate the following English text to French: {text}"
)
output_parser = StrOutputParser()

# Linear Chain Execution using LCEL
translation_chain = prompt | model | output_parser

result = translation_chain.invoke({"text": "Hello, how are you today?"})
print(result)
# Output: "Bonjour, comment allez-vous aujourd'hui ?"

2. LangGraph: Stateful Cyclical Agent

Below is a complete LangGraph script that defines a simple agent capable of looping back to query a tool if it determines that it needs more information to answer the user's question.

from typing import Annotated, TypedDict
from typing_extensions import Literal
from langgraph.graph import StateGraph, START, END
from langchain_core.messages import BaseMessage, HumanMessage, AIMessage
from langchain_openai import ChatOpenAI

# 1. Define State
# The State object maintains the history of messages between loops.
class AgentState(TypedDict):
    messages: list[BaseMessage]

# Initialize Model and Tool Definition
model = ChatOpenAI(model="gpt-4o-mini", temperature=0)

# 2. Define Nodes
def call_agent(state: AgentState):
    """Invokes the LLM based on the current message list state."""
    messages = state["messages"]
    response = model.invoke(messages)
    # Return a dict containing the updates to the message key
    return {"messages": [response]}

def call_tool(state: AgentState):
    """Mock node simulating a database query tool."""
    # We append a mock system message representing our database output
    tool_output = AIMessage(content="[Tool Output: Server CPU load is 42%]")
    return {"messages": [tool_output]}

# 3. Define Conditional Edge Router
def should_continue(state: AgentState) -> Literal["continue", "end"]:
    """Inspects the last message to decide if we need the tool node."""
    last_message = state["messages"][-1]
    # In a real agent, this would check for LLM tool_calls.
    # For this mock, we search for the keyword 'status' in the prompt.
    if "status" in last_message.content.lower() and len(state["messages"]) < 3:
        return "continue"
    return "end"

# 4. Construct Graph
workflow = StateGraph(AgentState)

# Add Nodes
workflow.add_node("agent", call_agent)
workflow.add_node("tool", call_tool)

# Set Entrypoint
workflow.add_edge(START, "agent")

# Add Conditional Edges
workflow.add_conditional_edges(
    "agent",
    should_continue,
    {
        "continue": "tool",
        "end": END
    }
)

# Connect tool back to the agent (loop/cycle)
workflow.add_edge("tool", "agent")

# Compile into a runnable application
app = workflow.compile()

# 5. Run Graph
initial_state = {"messages": [HumanMessage(content="Check system status.")]}
final_state = app.invoke(initial_state)

for message in final_state["messages"]:
    print(f"{type(message).__name__}: {message.content}")

Architectural Comparison

Choosing between LangChain and LangGraph depends on your task complexity. If your workflow is a predictable, linear path of data transformations, LangChain's simplicity and speed make it the ideal choice. If your task requires reasoning, self-correction, tools, or human oversight, LangGraph offers the necessary stateful control architecture.
